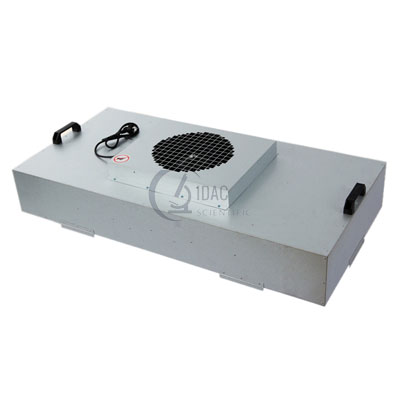

Fan Filter Unit Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10114
Quick Answer: The Fan Filter Unit pairs a built-in centrifugal blower with a HEPA filter rated 99.999% efficiency at 0.3μm, giving an air velocity of 0.45 m/s ±20%. It comes in four widths from 975 to 1775mm.
Last updated: October 2026
Key Features
Split design: shell and HEPA filter install and replace separately
Use singly or connect several together in a line
Blower service life up to 100,000 hours
Microprocessor control with low noise
Aluminium coated zinc plate shell
Technical Specifications
Specification
Value
External size (W x D x H)
975 / 1175 / 1475 / 1775 x 575 x 380 mm
Air velocity
0.45 m/s ±20%
HEPA filter
99.999% efficiency at 0.3μm
HEPA filter size (W x D x H)
970 / 1170 / 1470 / 1770 x 69 x 570 mm
Blower
Built-in centrifugal blower
Noise
≤60dB
Power consumption
110W / 110W / 220W / 220W
Power supply
AC220V ±10%, 50/60Hz; 110V ±10%, 50/60Hz
Shell material
Aluminium coated zinc plate
Gross weight
60 / 70 / 90 / 110 kg
About This Product
The Fan Filter Unit moves air through its HEPA filter using a built-in centrifugal blower. Units can work alone or be joined together to form a line, and the split design lets the shell and filter be installed and replaced separately.
Frequently Asked Questions
Q1. What filter does the Fan Filter Unit use? A HEPA filter rated at 99.999% efficiency at 0.3μm.
Q2. Can units be joined together? Yes. They can be used separately or connected together in a line.
