Automatical Microplate Washer Manufacturer,Supplier and Exporter in India

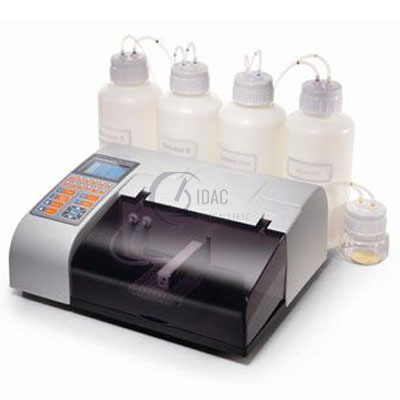

Automatical Microplate Washer

Product Code : DS-EMRAW-10110

Automatical Microplate Washer
Features:
1. 3.5 inch LCD screen with back light, easy to operate
2. Easy to name, edit and save different 100 wash programs.
3. Multi-plate can be selected by default settings or manual operation.
4. Stop or pause key in the panel can be chosen to stop or pause during working.
5. Aspirating in 2 positions, residual volume <0.7μl.
6. Wash bottle filter keeps sediment in the solution away the pipes.
7. Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip.
8. Suitable for flat, U and V-bottom microplates.
9. Automatical rinse procedure by distilled water when turn on or turn off can avoid crystallizing in the pipes.
10. Waste water sensor avoids overflow in the waste bottle.
11. The control technology for pump pressure can avoid clogging in needles.
12. Special rinse procedure, easy to maintain the device and reduces contamination between plates.
13. Detachable manifolds makes easy to clear particles in the manifolds.
14. Detachable microplate holder, easy to disinfect and maintain
15. Patent design of washer manifolds avoids it out of position or flop.
16. Scientific structure design avoids bottom contaminating.

Specifications:

Plate Model

Flat-, Round-, U-, V- plate (96-well and 48-well)

Manifold Types

8- and 12- way

Wash Time

1 to 99 times adjustable

Wash Lines

1 – 12 lines selectable

Residual Volume

0.7μl/well

Wash Mode

Plates or strips

Dispensing Uniformity

CV1.5%

Dispensing Volume

50-950μl, interval 50μl adjustable. (may extend to 0-6000μl, interval 25μl adjustable.)

Number of Dispensing Channels

3 channels

Soaking and Shaking Time

0-999(seconds/minutes/hours) adjustable

Aspiration Time

0.1-9.9 seconds adjustable, interval 0.1 second

Pipeline Wash Time

0-240 seconds adjustable

Distilled Water Automatically Wash Interval

0-20 plates

Power Supply

AC220V±l0%50Hz

Device Size

446*368*l64 mm

Package Size

640*468*458mm

Net Weight

11.8kg

Gross Weight

13kg
