LCR Meter Manufacturer,Supplier and Exporter in UK

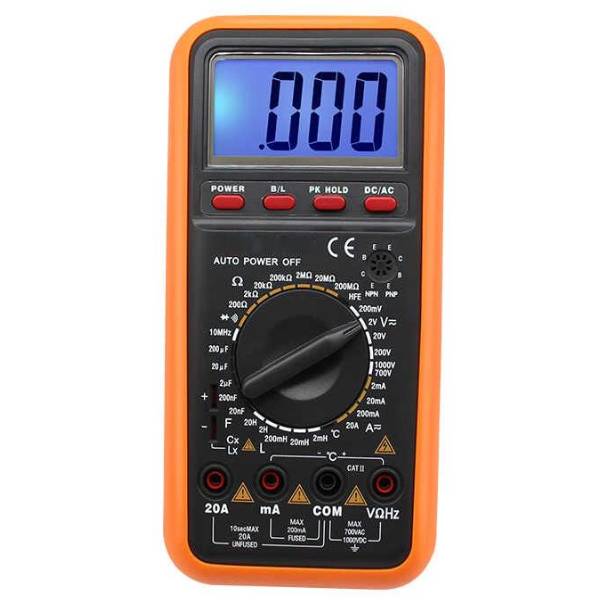

LCR Meter

Product Code : DS-EE-11461

Features:
• An idea tool for labs, factories, and radiotechnology, etc.
• Large LCD display, Unit symbol display, makes the reading clearer and the operation more convenient.
• Max. measuring range of capacitance:2000uF, and Max. measuring range of frequency:10MHz..
• Full function protection, anti high voltage circuit design(voltage dependent resistor:1300V)..
• Peak value holds and data hold. Strong antimagnetic and anti-jamming performance..
• Resistance: 200Ω, 2K/20K/200K/2MΩ, 20MΩ, 2000MΩ
• Capacitance: 20nF/200nF/2uF, 20uF/200uF
• Inductance: 2mH/20mH/200mH/2H/20H
• Temperature: -20~1000˚C
• Frequency: 2k/20k/200k/2000K/10MHz
• DCV: 200mV/2V/20V/200V, 1000V
• ACV: 200mV, 2V/20V/200V, 750V
• DCA and ACA: 2mA/20mA, 200mA, 20A
• Transistor, Diode and continuity test
• Power source: 9V Battery
• Accessories: Test lead, thermocouple, test socket, battery and user manual

    Download as Pdf
