Voltmeter Laboratory Type Manufacturer,Supplier and Exporter in Uk
Product Code : DS-LE-10796
Quick Answer: Voltmeter Laboratory Type comes in AC and DC versions with Class 0.5 accuracy, a 135mm (5-3/8inch) scale and 4 ranges, reading 75/150/300/600V on AC and 1v-1000V on DC.
Last updated: October 2026
Key Features
AC and DC versions with 4 ranges each
AC ranges 75/150/300/600V
DC ranges 1v-1000V
Accuracy Class 0.5
Scale length 135mm (5-3/8inch)
Binding post or safety socket connection
Technical Specifications
Specification
Value
Accuracy
Class 0.5
Scale length
135mm (5-3/8inch)
Weight
1.7kg
Dimensions
195(Length) x 169(Width) x 86(Depth) mm
AC ranges
75/150/300/600V
DC ranges
1v-1000V
DC principle
Moving coil type
About This Product

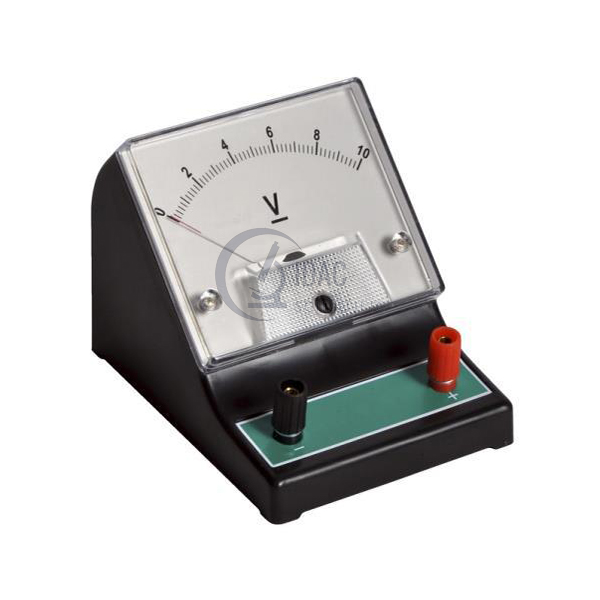

The voltmeter is used in practical work to measure potential difference in AC or DC circuits. It connects through binding posts or safety sockets, and the reading is taken from the 135mm scale behind the glass window.
Frequently Asked Questions
Q1. What voltage ranges does the Voltmeter Laboratory Type cover? The AC version reads 75/150/300/600V and the DC version covers 1v-1000V, each with 4 ranges.
