Multimeter Digital Manufacturer,Supplier and Exporter in UK

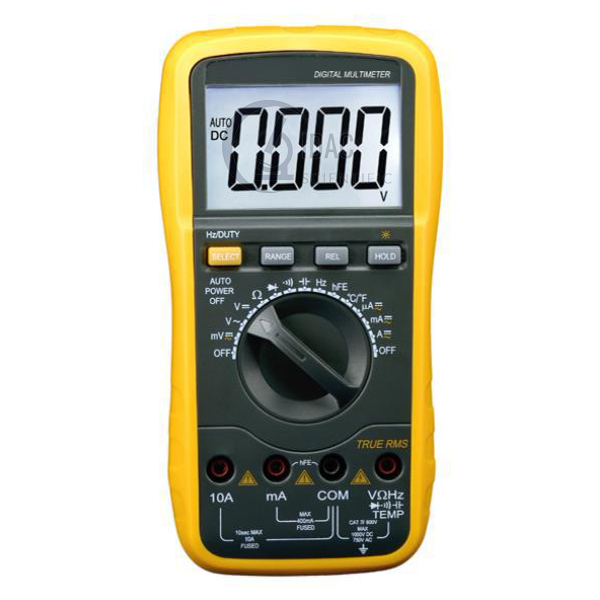

Multimeter Digital

Product Code : DS-LE-10798

DESCRIPTION :-
A Digital Multimeter is a test tool used to measure two or more electrical values principally voltage (volts), current (amps) and resistance (ohms).
It is a standard diagnostic tool for technicians in the electrical industries.
3½ Digits 1999 counts
Manual Ranging
Continuity Beeper/Diode Test
Data Hold hFE Test
Temperature Measurement
Auto Power Off, LCD Backlight, Diode Test, Low Battery Indication, Data Hold
DCV: 200mV/2V/20V/200V ±(0.5%+3d)1000V ±(0.8%+10d), ACV: 2V/20V/200V ±(0.8%+5d)750V ±(1.2%+10d), DCA: 2mA/20mA ±(0.8%+10d), 200mA ±(1.2%+8d), 10A ±(2.0%+5d), ACA: 20mA ±(1.0%+15d), 200mA ±(2.0%+5d), 10A ±(3.0%+10d),
Resistance: 200? ±(0.8%+5d), 2K/20K/200K/2M? ±(0.8%+3d) 20M? ±(1.0%+25d), 200M? ±[5.0%(rdg-10)+30d]
Frequency: 20K Hz ±(3.0%+18d)
Capacitance: 2nF ±(2.5%+20d), 20nF ±(2.5%+20d), 200nF ±(2.5%+20d), 2?F ±(2.5%+20d), 20?F ±(5.0%+30d)
Temperature: (-20oC~400oC)±1.0%+5d, (400~1000?C)±(1.5%+15d)

    Download as Pdf
